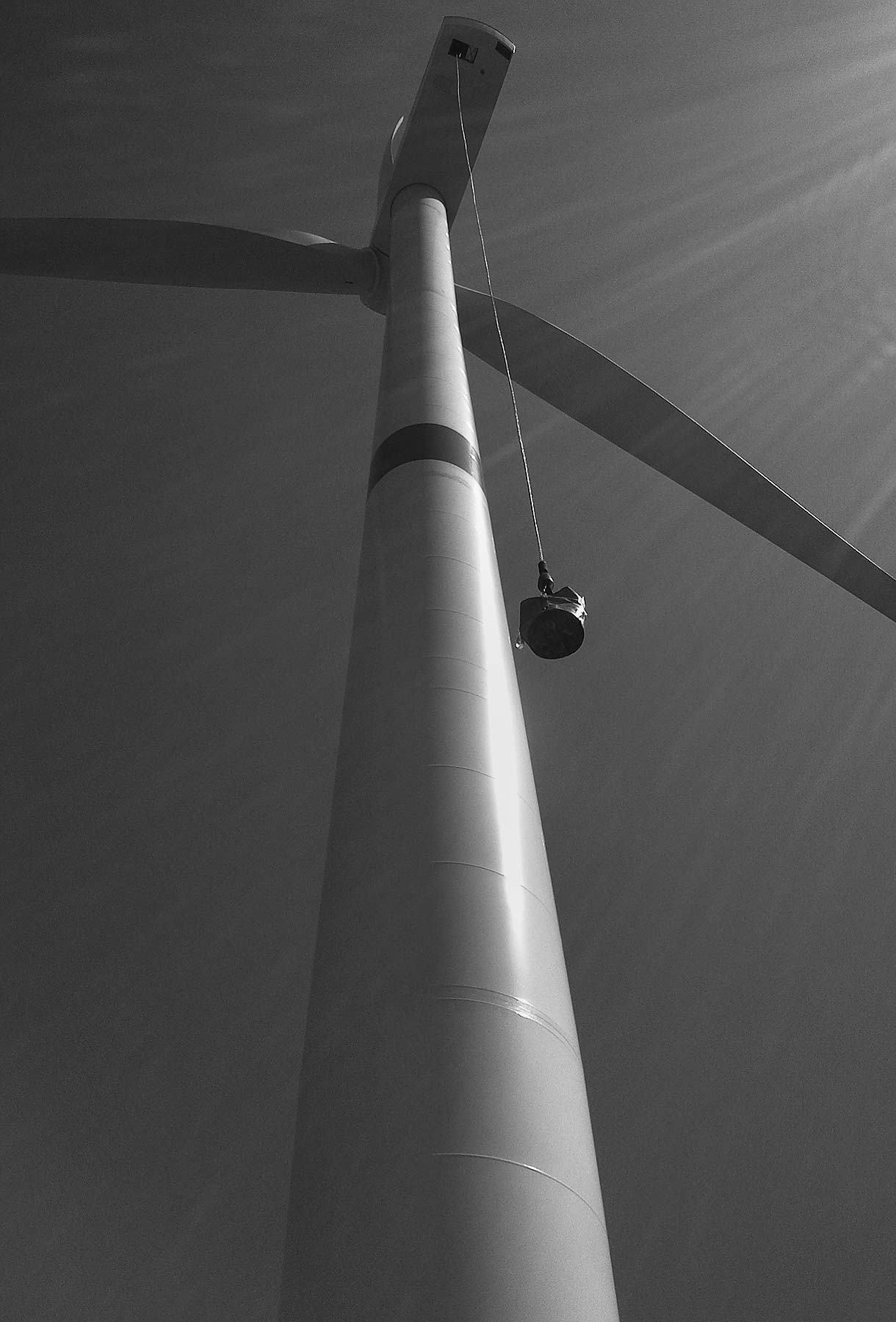

Woven tarpaulin heavy load bag in use for the wind energy plant

Lift heavy loads easily & safely

We are the experts for lifting sensitive freight in great heights

A focus of our innovation lab for new technical textile products is the lifting of heavy goods in extreme heights. Thus our high quality heavy load bags were created which we have been selling very successfully since 2007.

A lot has happened since the first heavy load bag was sold. Thus our product range in the meantime comprises several models in various designs. Each model can be adjusted according to our range, colour combinations and individual print with extra features.
The majority of our models is round or oval and this is for a good reason. With collisions with other objects for example due to squalls, the round heavy load bags just roll off. Protruding corners could get damaged in these situations. In this way, the woven tarpaulin is better protected from knocks and the accompanying material wear. In addition the bags are a lot stiffer.
What has not changed until today is that every single heavy load bag which leaves our firm comes from our production site in Schleswig-Holstein.

„Our heavy load bags are manufactured in Germany”

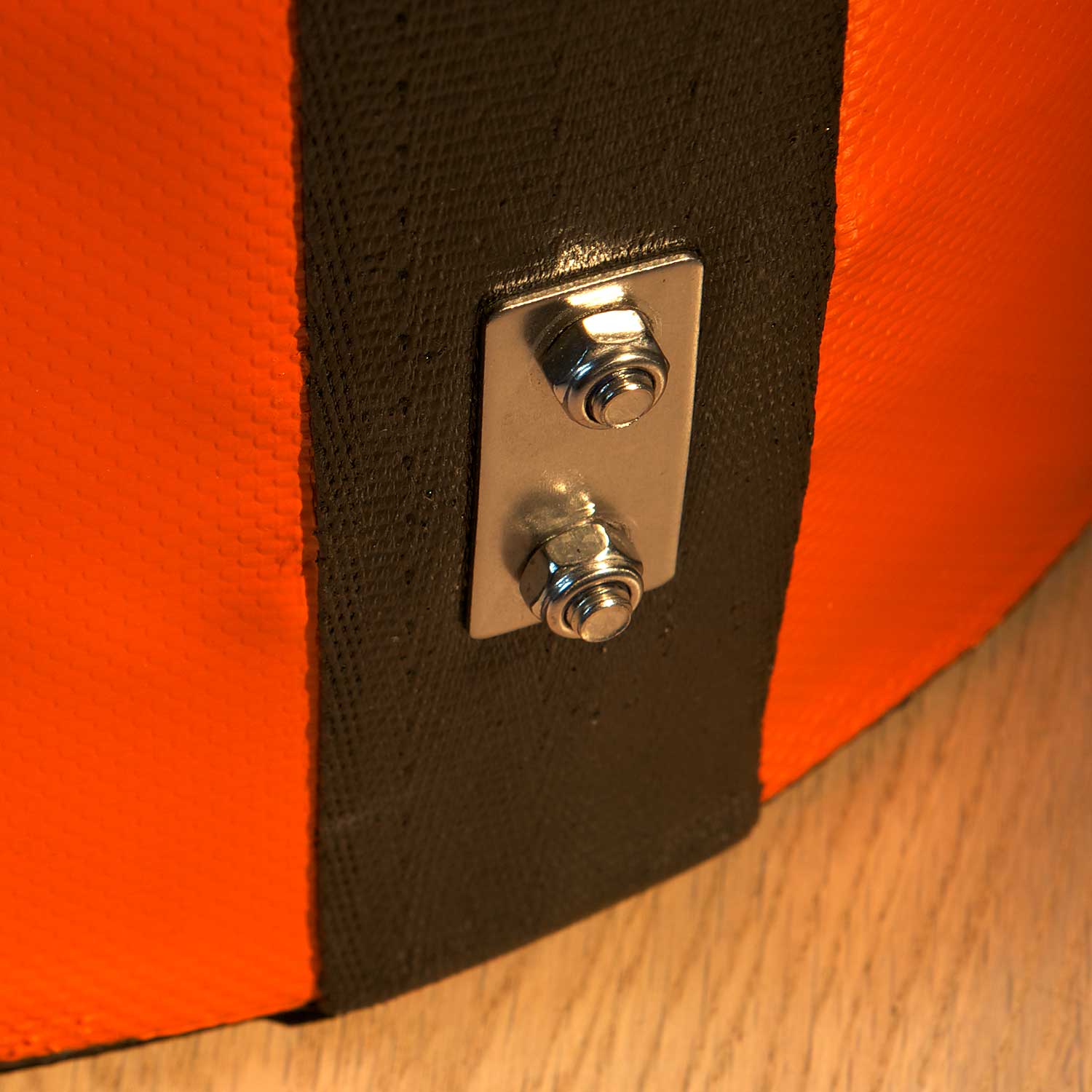

We have attained the European design patent for this product innovation, but we don’t intend to rest on our laurels. We consistently carry on developing the heavy load bags so that they are equipped also for future requirements and new purposes of use. For this we have to be able to rely on the materials to be processed. We obtain these exclusively from brand manufacturers and have parts such as metal fittings with higher breaking loads especially made for our production.

Our heavyweight among under the heavy load bags has currently a breaking load of 5,9 t. In order to attain this kind of category, the quality in material and working has to be right up into the smallest detail. In production, we pay increased attention to each single step in the processing – beginning with running direction of the technical textiles for the cut, over clean and tight sewing and welding seams up to final quality control before leaving our workshop. Thus we attain an extremely high tear strength and minimum material wear also with very high use of the heavy load bag.

„All our heavy load bags are DEKRA certified

Our care in development and production reaps its rewards. Each model is certified by DEKRA. In addition, we confirm that our products fulfil the valid requirements for placing on the market in the EU with putting the CE label on all our products.

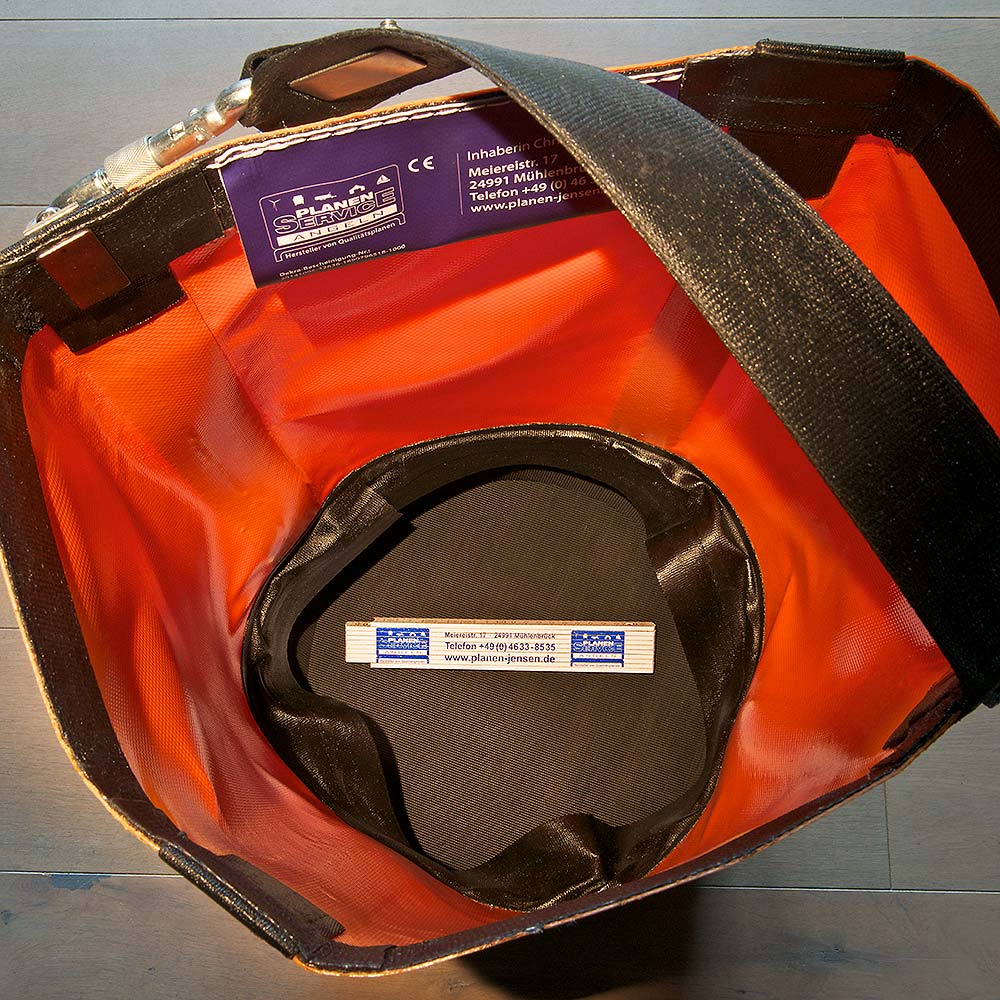

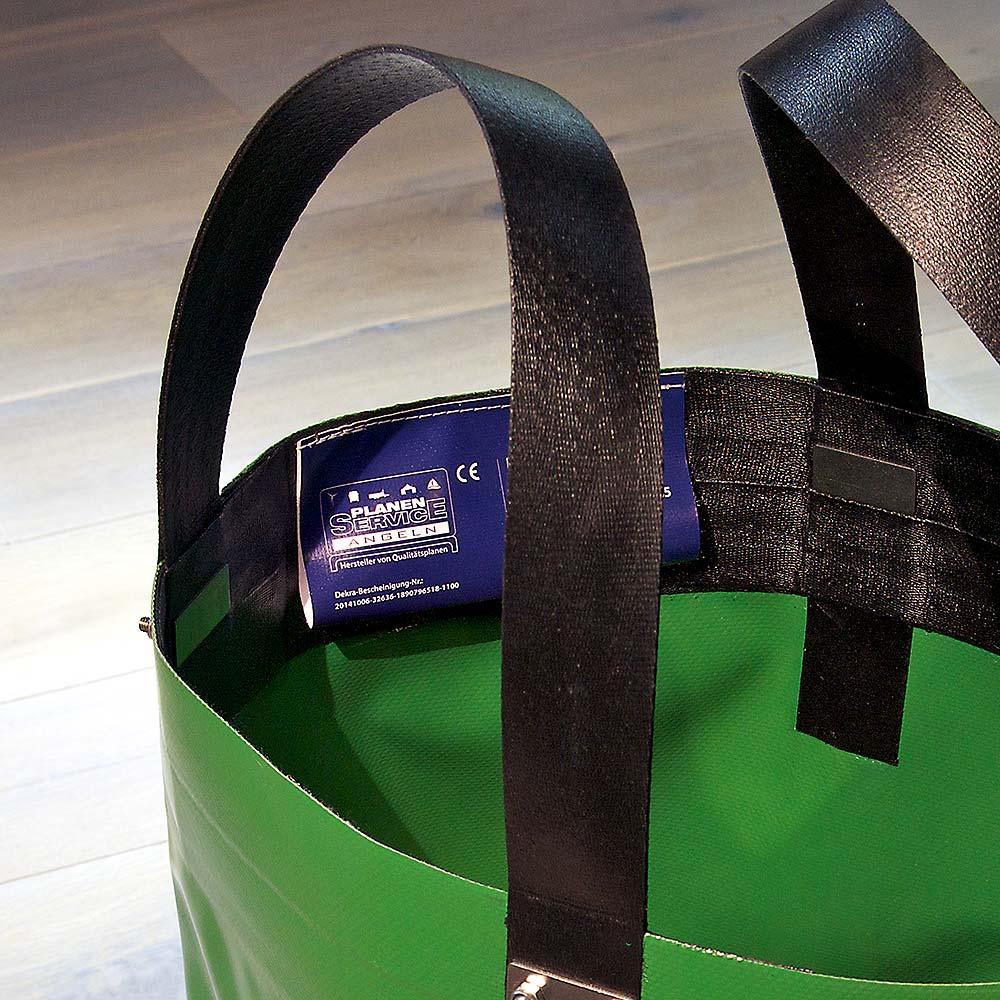

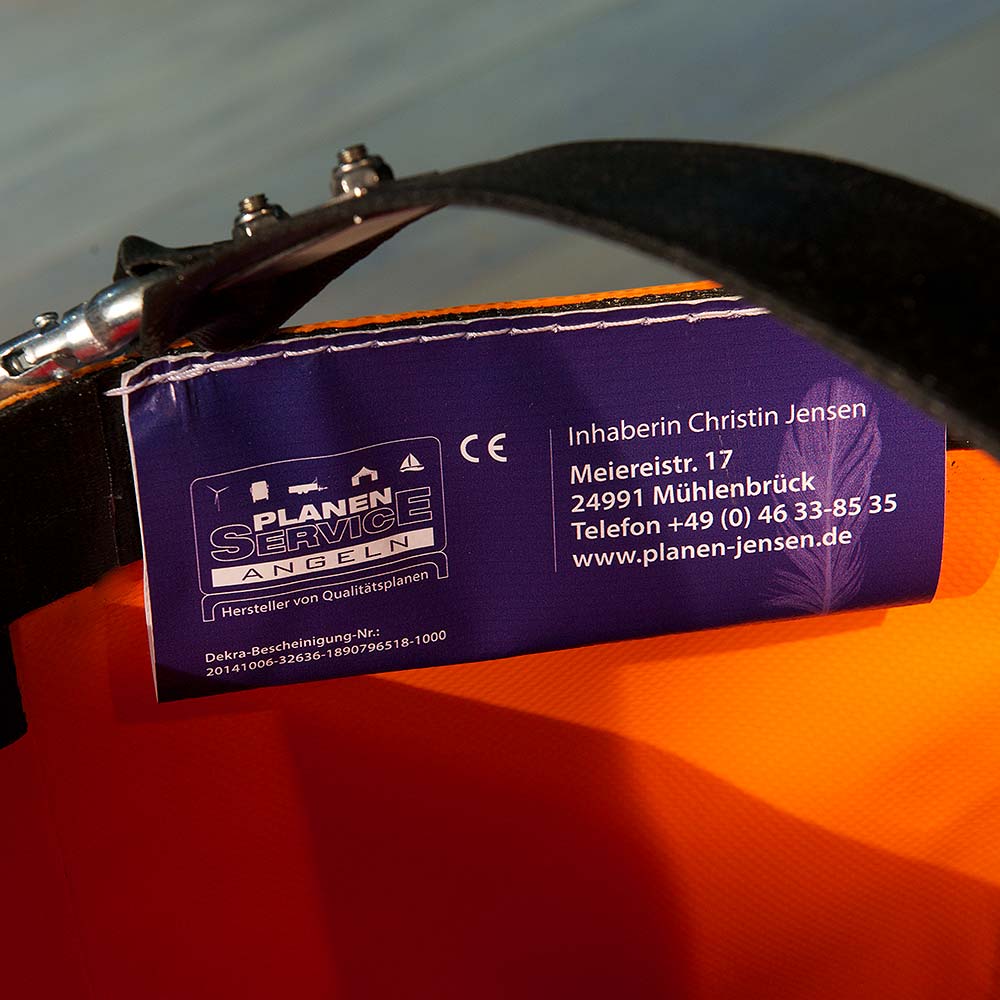

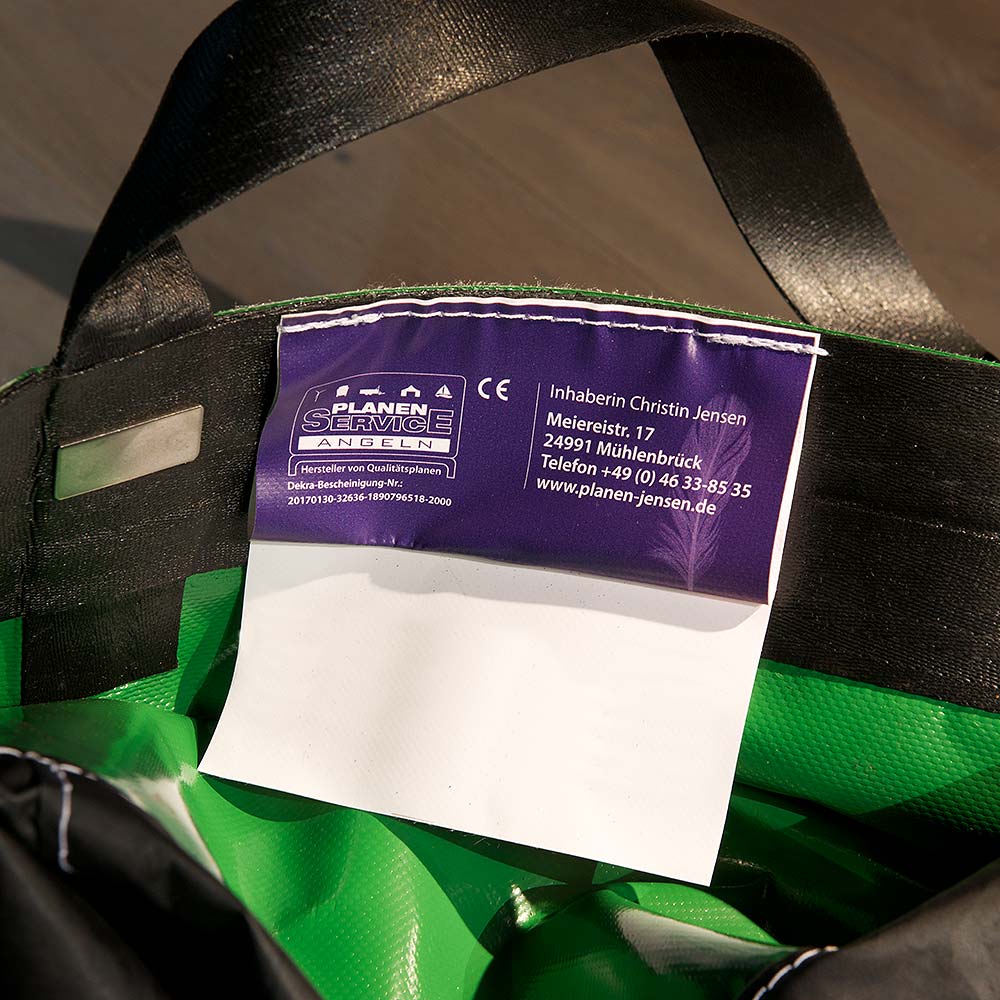

Each bag has a type label on which you can see the certificate number, the production number, the production date as well as the supplier number (if available). Thus the production process is continuously visible for you. Up to today we have a complaint rate of 0%.

„diverse purposes of use make them indispensable for industry and skilled crafts”

Our heavy load bags made of thermically welded PVC coated fabrics are designed to lift transported materials like machine parts, heavy small parts, connection materials, tools etc. by way of crane and winch safely and easily in great heights and thereby protecting your staff optimally. They are suitable for the repeated carrying and lifting of supplies and not dangerous solid and fluid contents with work in great heights. Construction, auxiliary and operating materials, fluids and paste materials have to be put into solid containers when transported.
Even though our bags were especially developed for the transport of heavy goods in extreme heights, they are of course likewise best suitable to move equipment near the ground safely and easily. For example, goods with small parts can be delivered without any unnecessary and time-consuming repacking more easily and quickly.
The diverse purposes for use and the high quality make our heavy load bag indispensable for industry and skilled crafts.

Now hiring & hire purchase are also possible!

You can also hire the heavy load bags or pay for them via hire purchase. Be free to contact us.

heavy load bag versions

DEKRA Signet

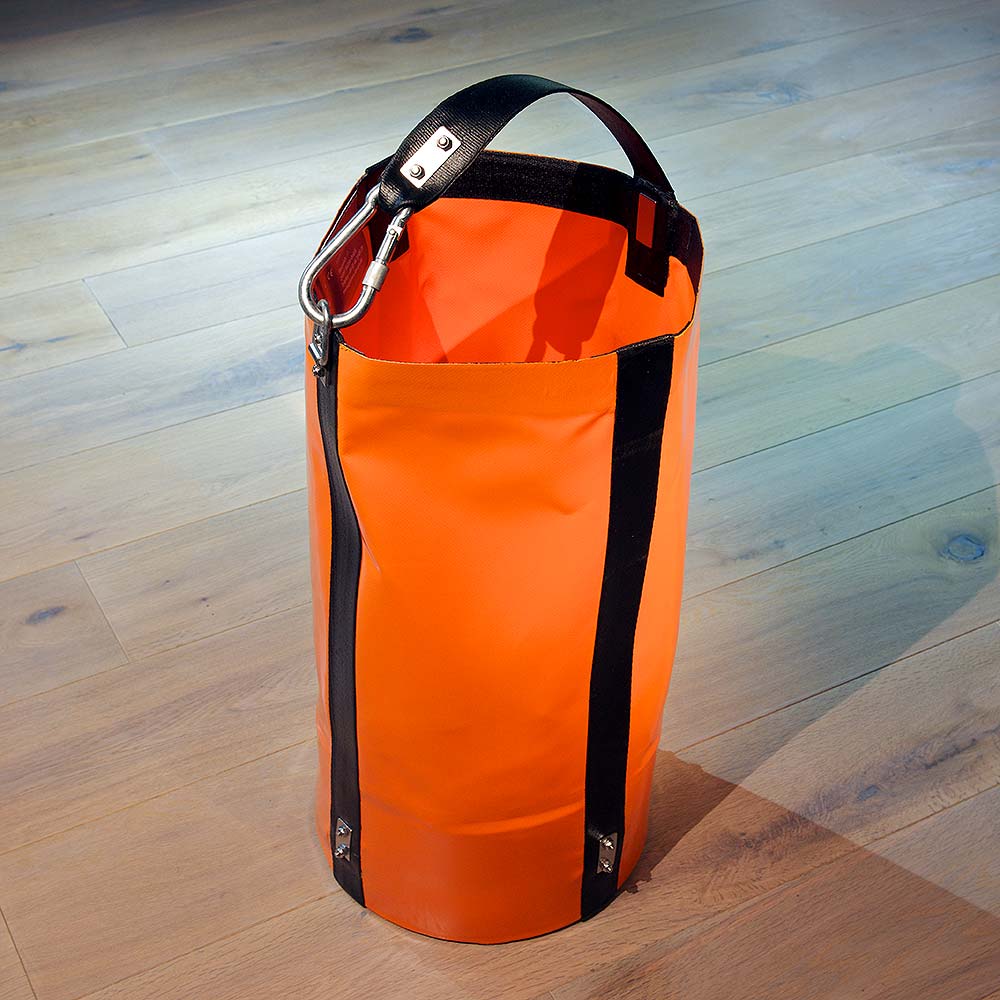

Standard Design Model 1
Working Load Limit250 kg
safety factor4:1
PVC fabric900 g/m²
size ∅33 cm40 cm50 cm60 cm
standard height64 cm
PVC fabric ral colours

strap colours

Details
  • safety factor 4:1
  • WLL modifiable on wish
  • DEKRA certified
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production only takes place in Germany
  • design patent EUIPO 002102004
Extras
  • height can be varied on wish
  • double external layer for reinforcement, height: 18 cm

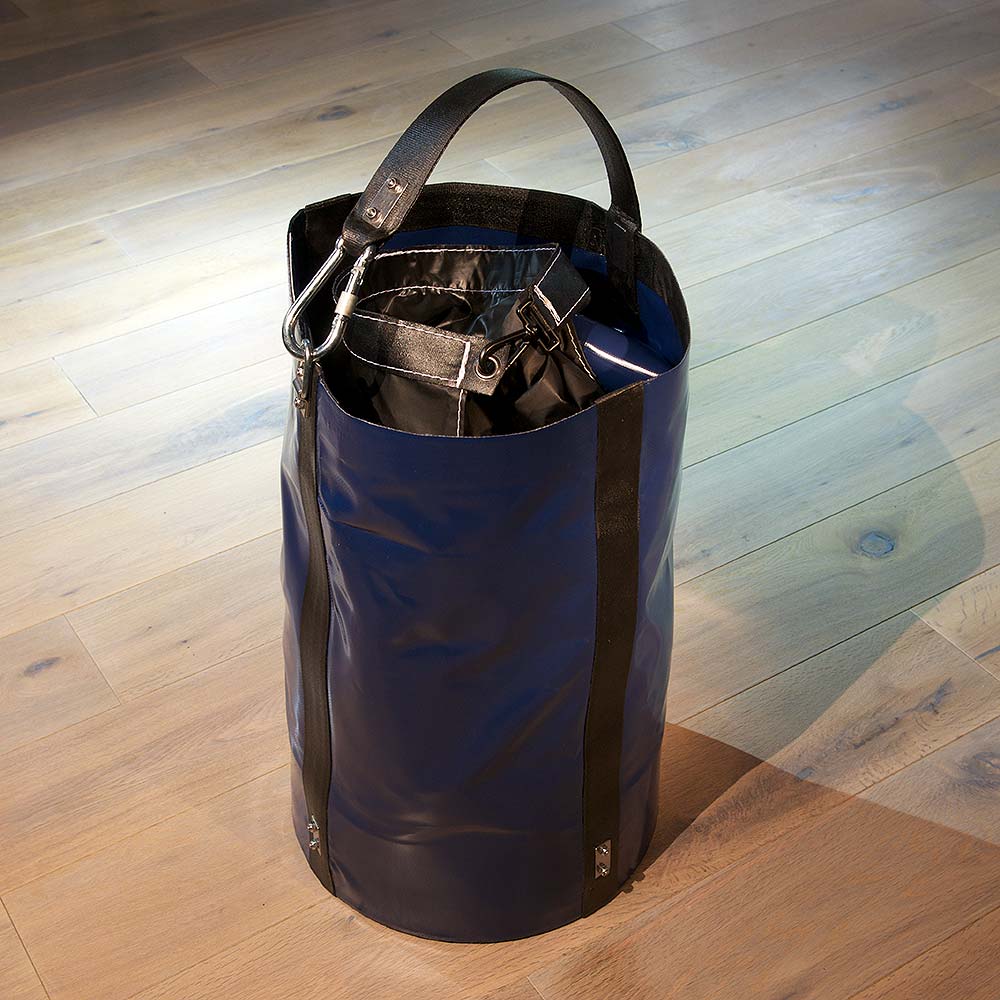

  • bag clasp inside including snap shackle

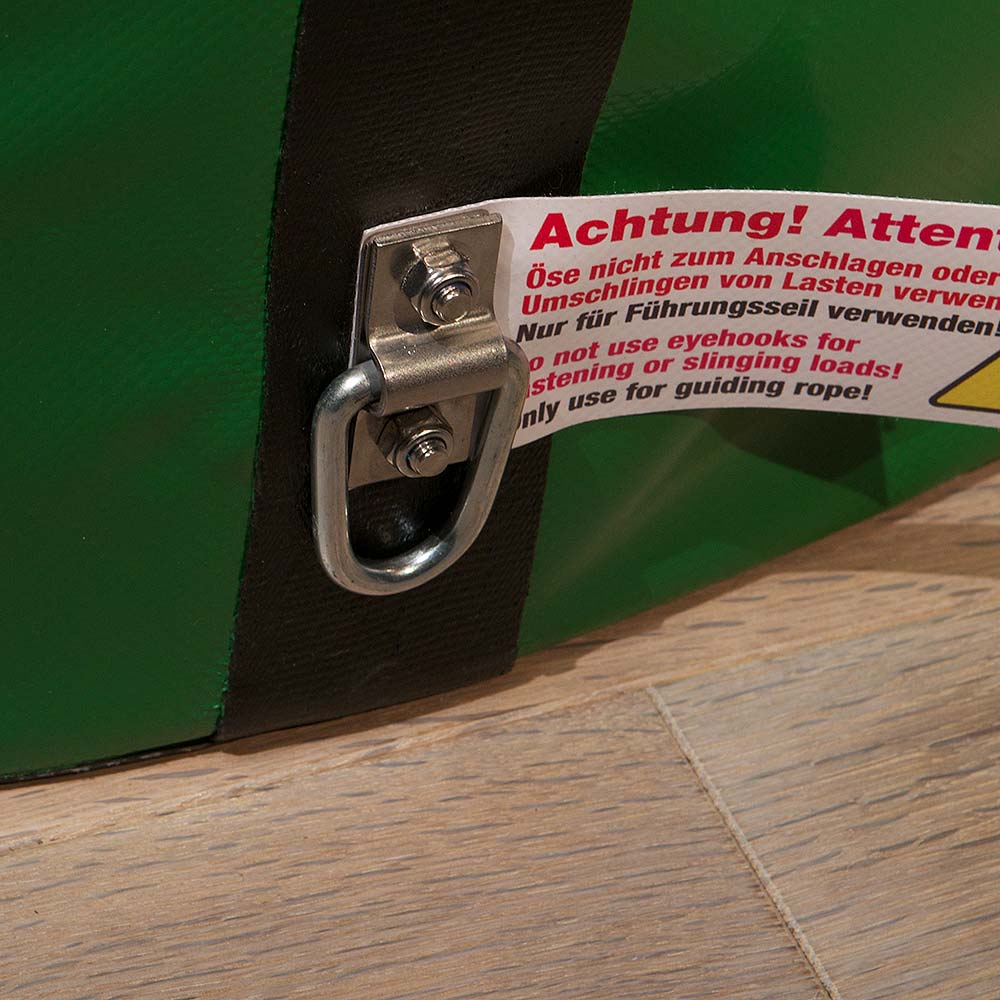

  • metal cramps for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us
DEKRA Signet

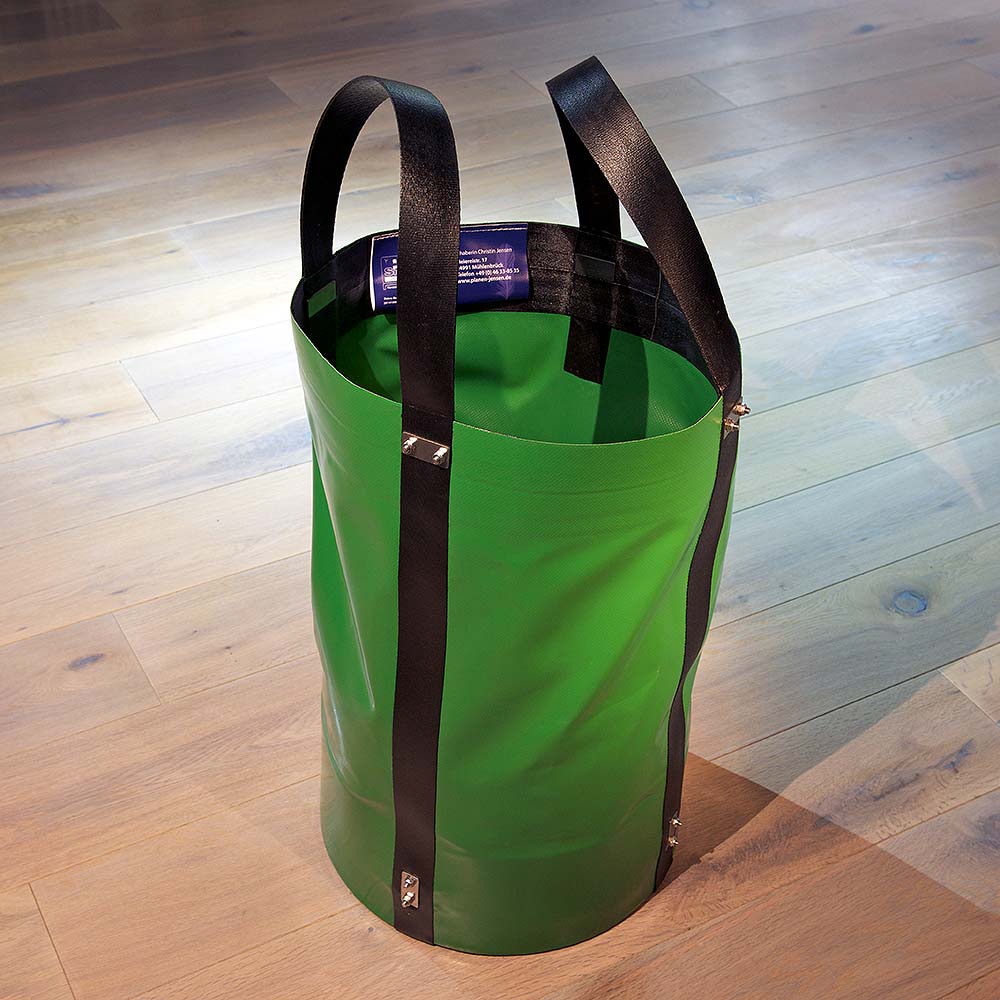

Standard Design Model 2
Working Load Limit250 kg - 1.475 kg
SAFETY FACTOR 4:1
PVC fabric900 g/m²
size ∅33 cm40 cm50 cm
height64 cm
PVC fabric RAL colours

strap colours

Details
  • safety factors 4:1, 5:1 or 7:1
  • WLL modifiable on wish
  • DEKRA certified
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
  • design patent EUIPO 002102004
Extras
  • height can be varied on wish

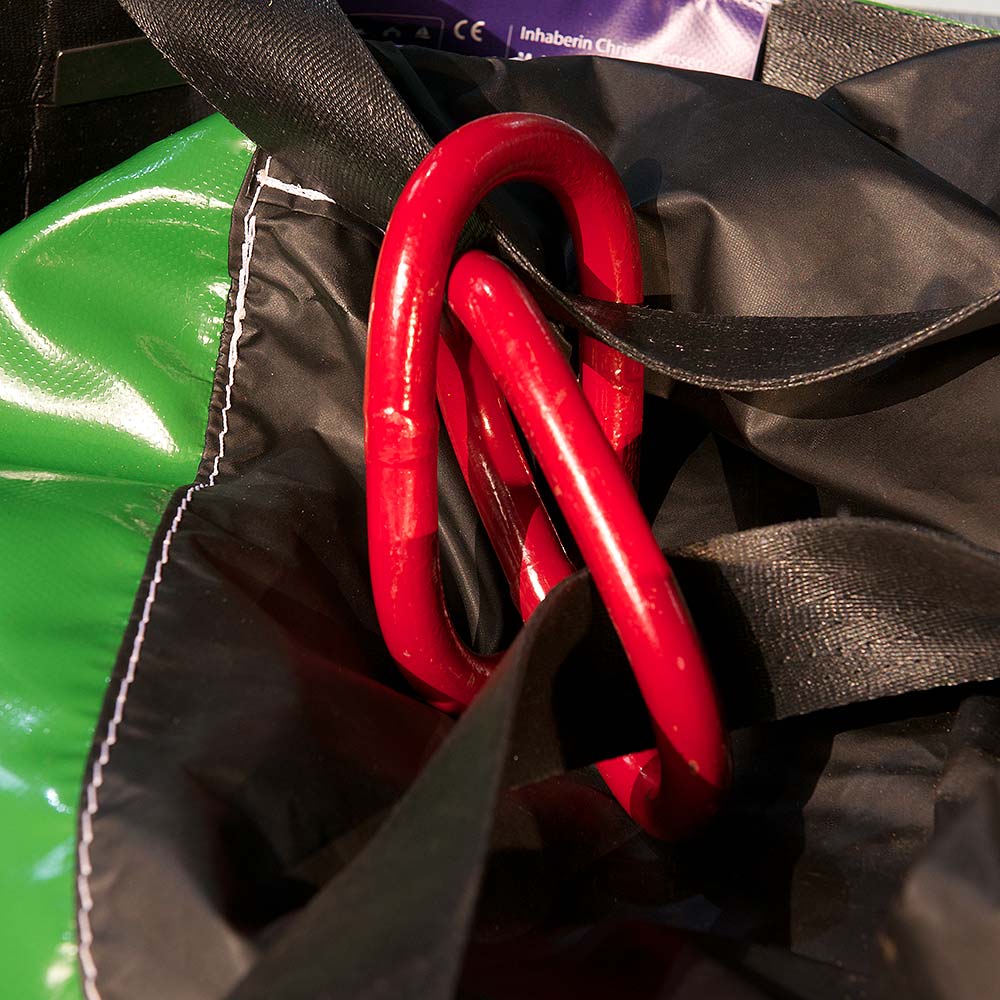

  • chain link for the load carrying capacity, 2 items
  • double external layer for reinforcement, height: 18 cm

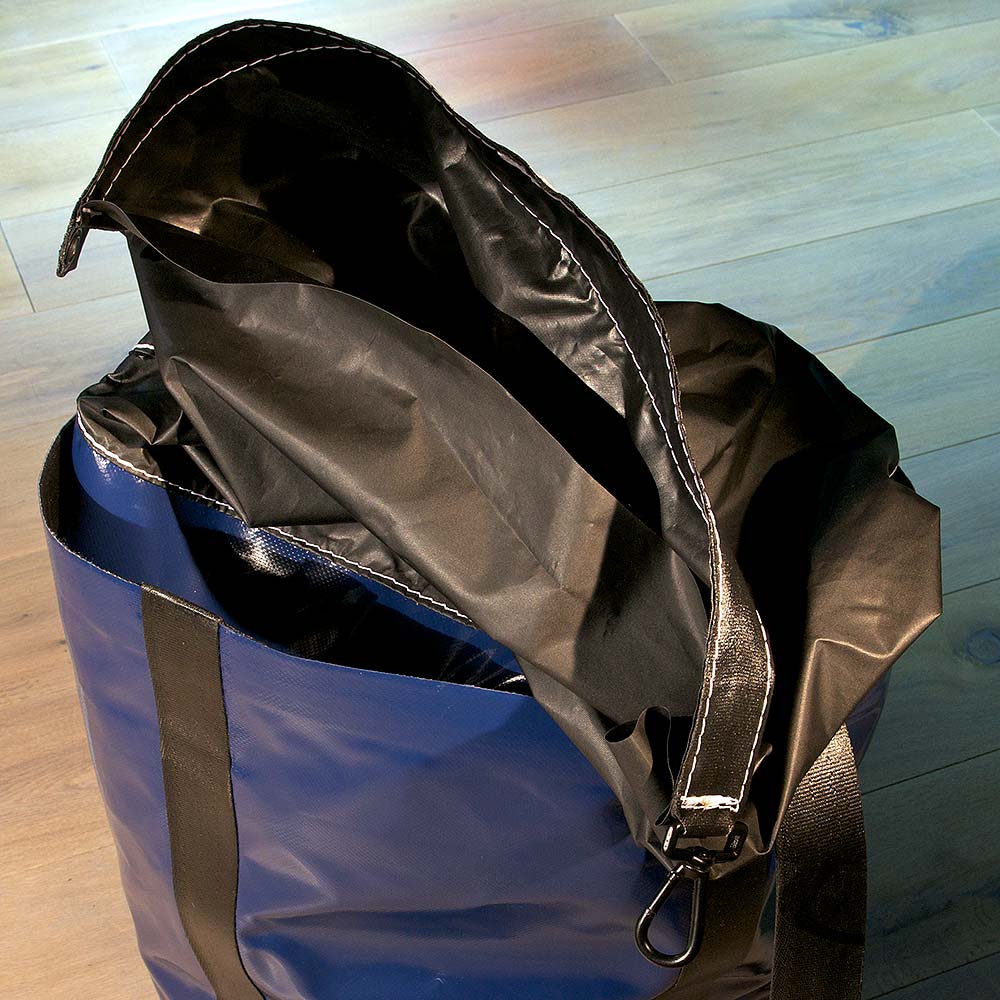

  • bag clasp inside including snap shackle
  • metal cramp for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us
DEKRA Signet

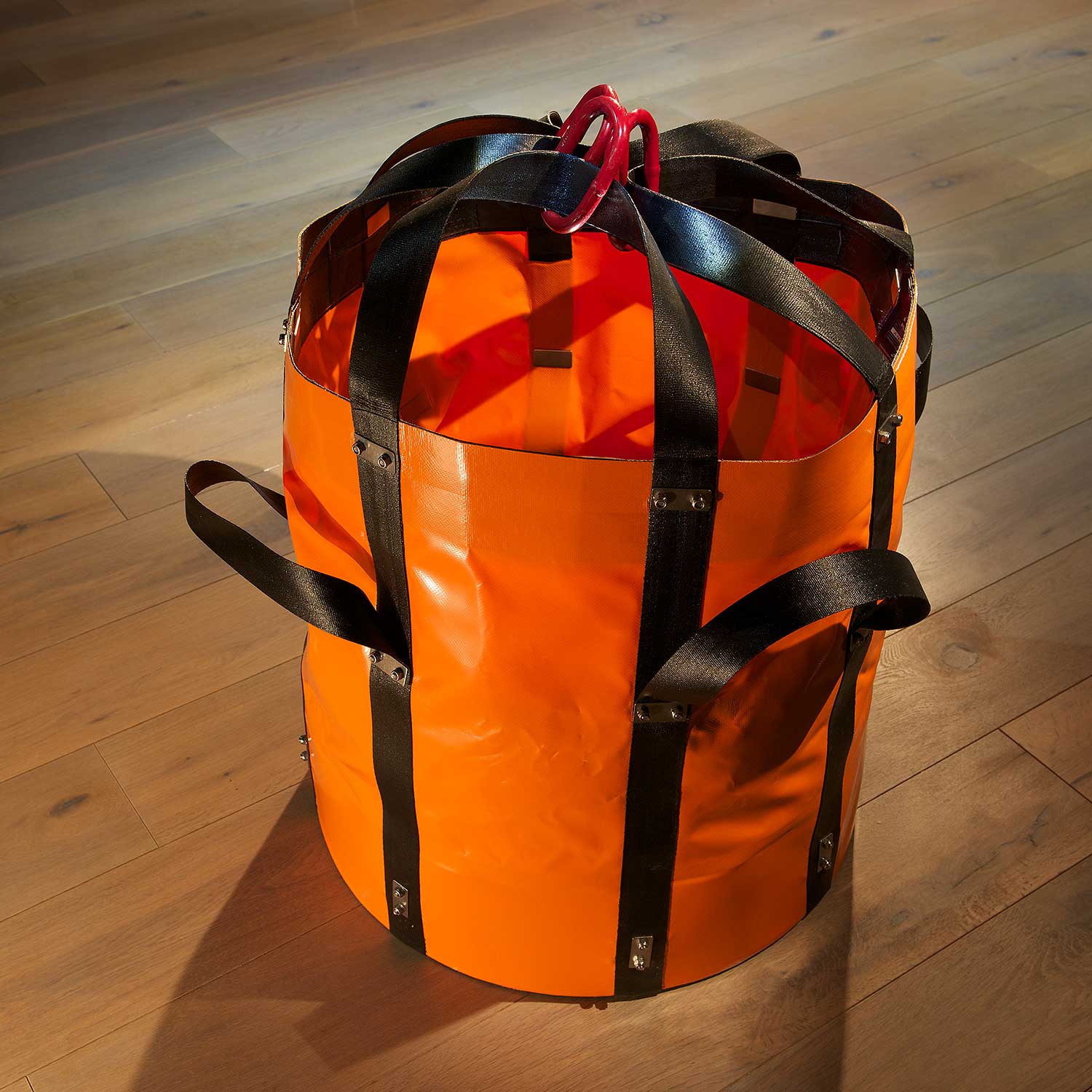

Standard Design Model 3
Working Load Limit250 kg - 1.475 kg
safety factor4:1
PVC fabric900 g/m²
size ∅60 cm90 cm120 cm
height90 cm
PVC fabric RAL colours

Strap colours

Details
  • safety factors 4:1, 5:1 oder 7:1
  • WLL modifiable on wish
  • DEKRA certified

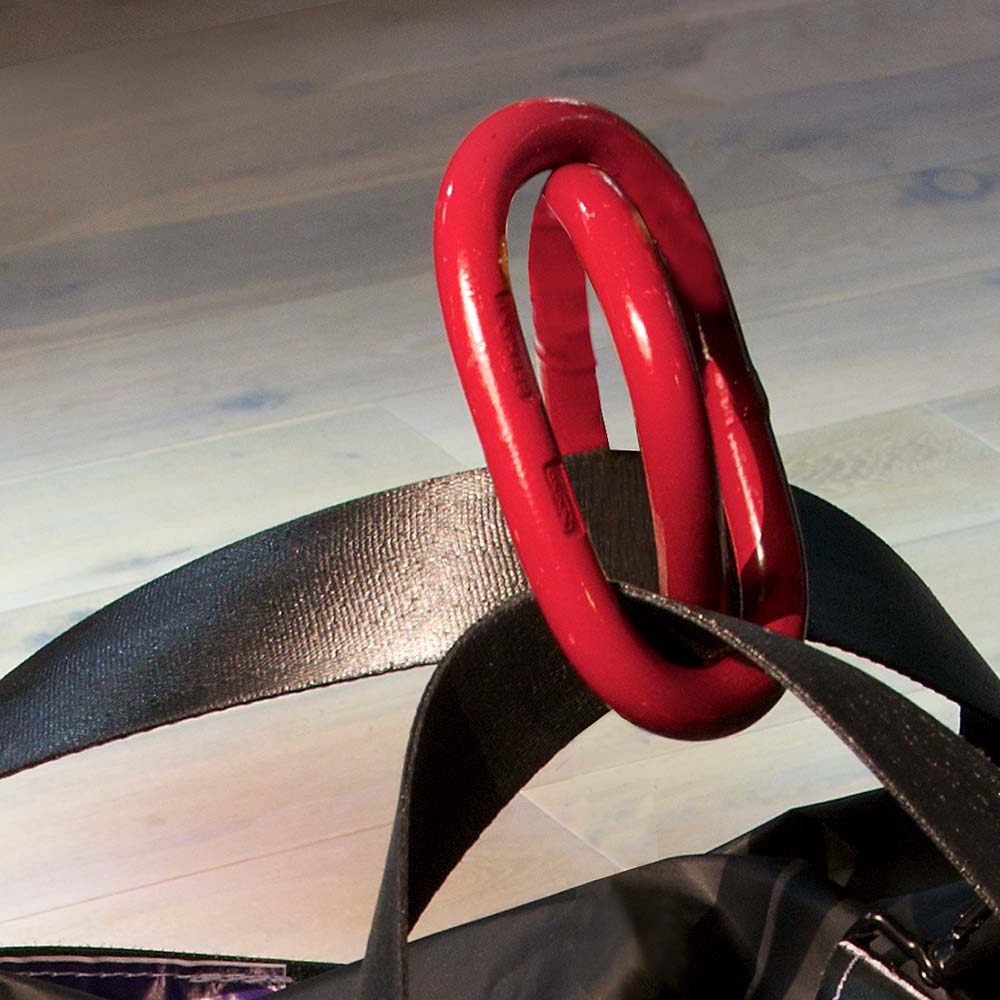

  • chain link for load carrying capacity, 2 items
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
  • design patent EUIPO 002102004
  • registered design 20214007744.4
Extras
  • height can be varied on wish
  • metal cramp for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us
DEKRA Signet

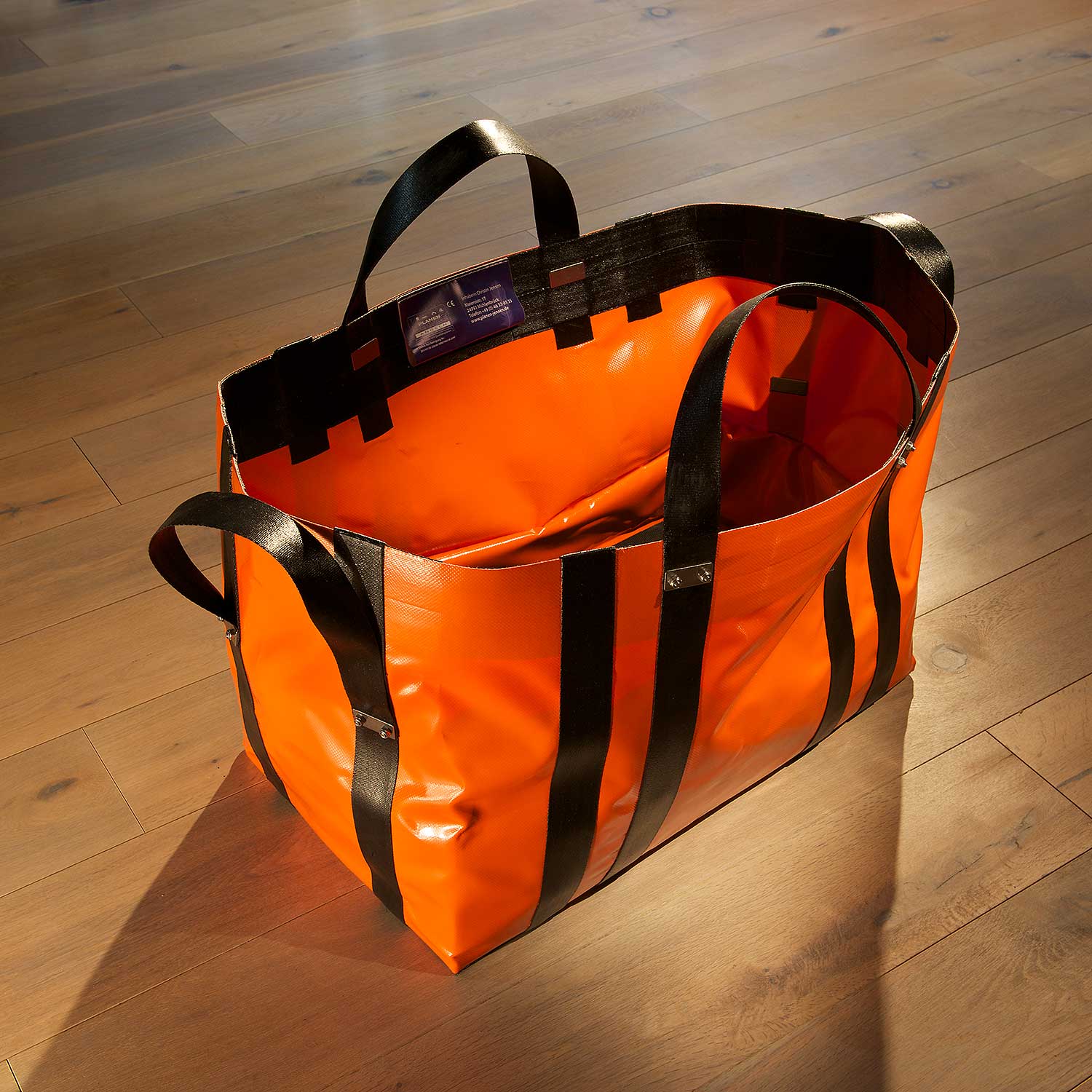

Standard design Model 4
Working Load Limit250 kg - 1.475 kg
SAFETY FACTOR4:1
PVC FABRIC900 g/m²
Size35 x 25 cm50 x 50 cm60 x 40 cm
60 x 60 cm70 x 40 cm90 x 70 cm
height64 cm
PVC FABRIC RAL COLOURS

STRAP COLOURS

Details
  • safety factors 4:1, 5:1 or 7:1
  • WLL modifiable on wish
  • DEKRA certified
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
  • design patent EUIPO 002102004
Extras
  • height can be varied on wish
  • chain link for load carrying capacity, 2 items
  • bag clasp inside including snap shackle
  • metal cramps for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us
DEKRA Signet
standard design Model 5
Working Load Limit250 kg - 1.475 kg
safety factor4:1
PVC fabric 900 g/m²
sizeca. 80 x 45 cm
height70 cm
PVC FABRIC RAL COLOURS

STRAP COLOURS

Details
  • safety factors 4:1, 5:1 or 7:1
  • WLL modifiable on wish
  • DEKRA certified
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
  • design patent EUIPO 002102004
Extras
  • height can be varied on wish

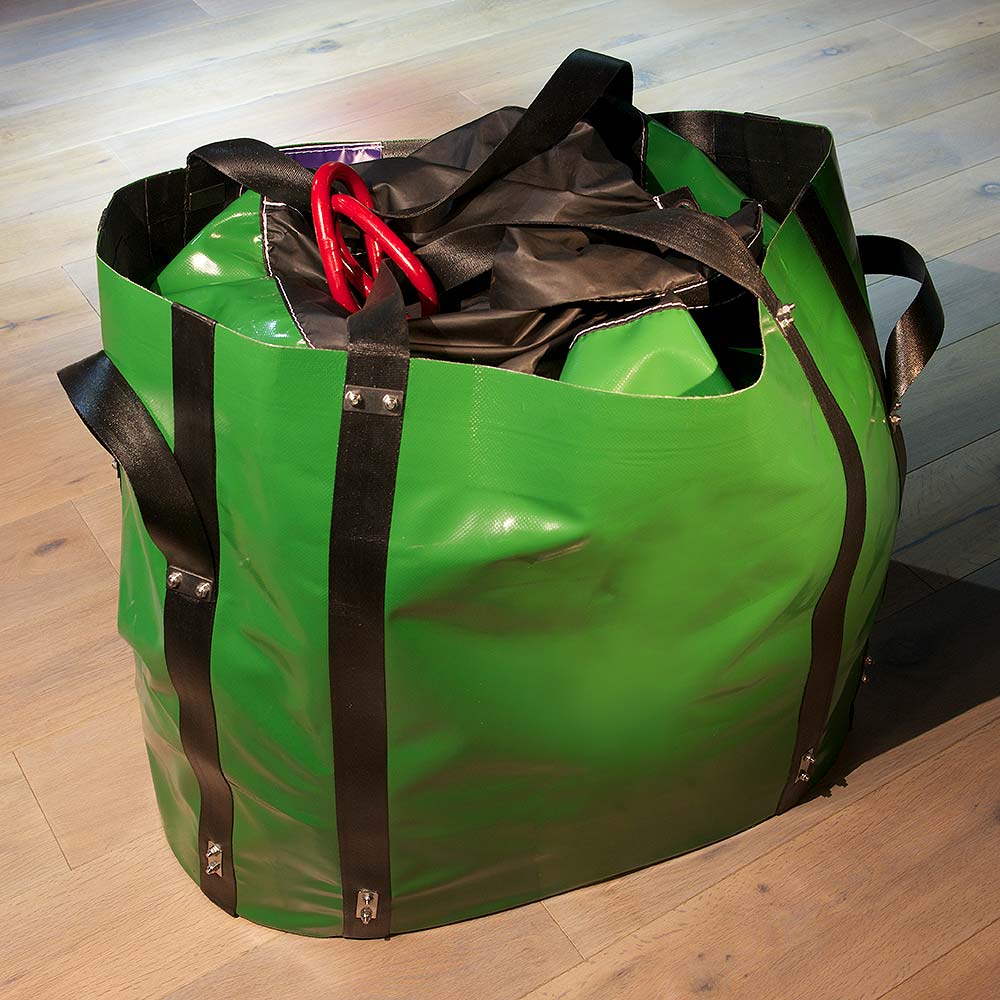

  • chain link for load carrying capacity, 2 items
  • bag clasp inside including snap shackle
  • metal cramp for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us

heavy load accessories

DEKRA Signet

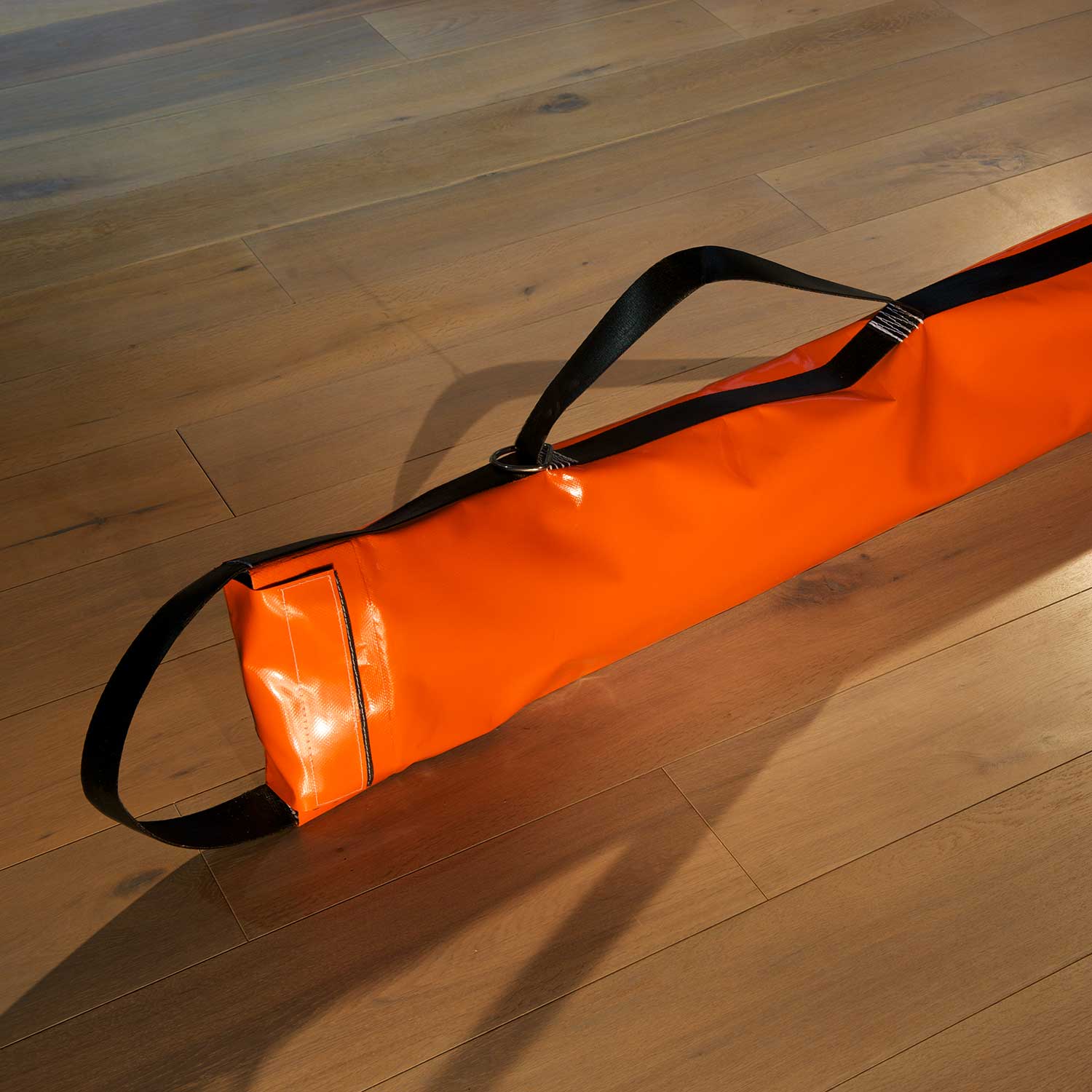

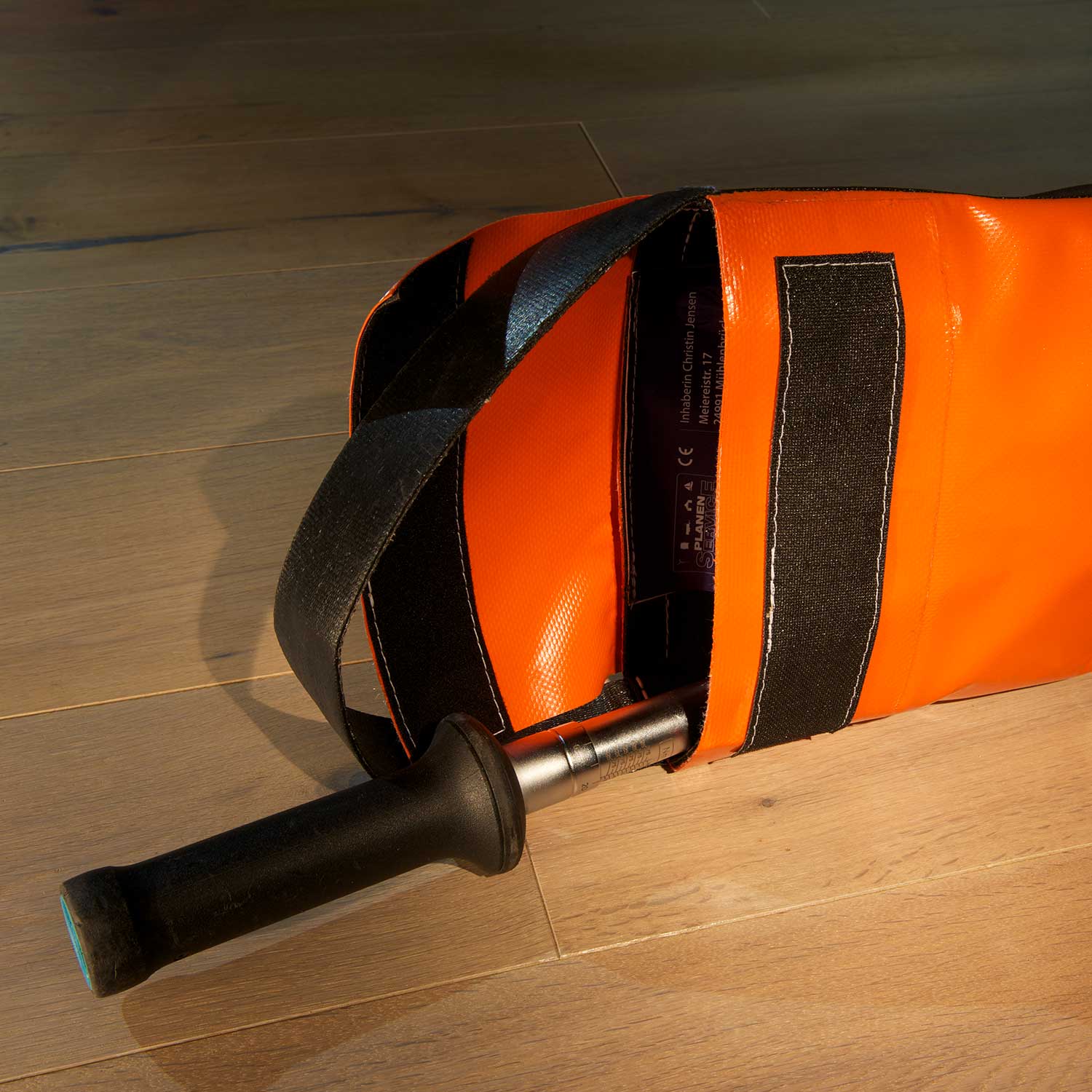

BAG FOR TORQUE WRENCH
Working Load Limit250 kg
safety factor4:1
PVC fabric900 g/m²
Size ∅20 cm
height140 cm
PVC FABRIC RAL COLOURS

StRAP COLOURS

Details
  • safety factor 4:1
  • WLL modifiable on wish
  • with carry strap and shoulder strap
  • for the transport single and double load position point
  • double bag clasp with safety clasp and additional flap cover with velcro fastener
  • DEKRA certified
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
  • design patent EUIPO 002102004
Extras
  • height can be varied on wish
  • metal cramp for guiding line
  • bag for guiding line (guiding line not contained), 33 cm, double bottom
  • individual print
  • individual logo label
  • for further extras please contact us

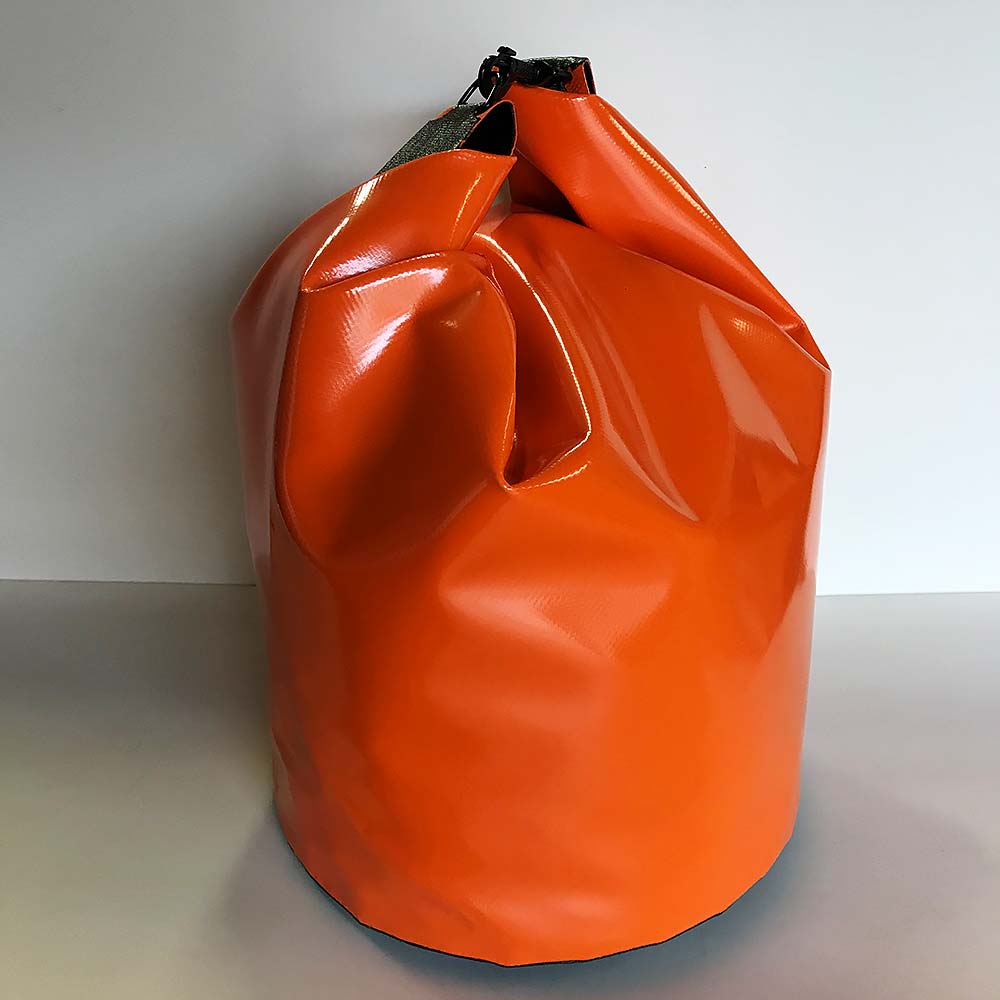

BAG FOR GUIDING LINE
PVC fabric900 g/m²
size ∅30 cm
heightvariabel
PVC FABRIC RAL COLOURS

STRAP COLOURS

Details
  • bag clasp with Bozen carabiner hook
  • double bottom
  • not for transporting high by lift
  • PVC fabric in stock in various RAL colours
  • strap webbing in stock in the colours black, grey and white
  • production exclusively takes place in Germany
Extras
  • individual print
  • individual logo label
  • for further extras please contact us
